Note
This page was generated from a Jupyter notebook.
You can download it here: notebooks/Example_wrfout.ipynb
[2]:
from solweig_gpu import thermal_comfort
[3]:
thermal_comfort(
base_path='Downloads/SOLWEIG-GPU 2/Input_rasters/',
selected_date_str='2020-08-13',
building_dsm_filename='Building_DSM.tif',
dem_filename='DEM.tif',
trees_filename='Trees.tif',
landcover_filename='Landcover.tif',
tile_size=1000,
overlap=100,
use_own_met=False,
start_time='2020-08-13 06:00:00',
end_time='2020-08-14 05:00:00',
data_source_type='wrfout',
data_folder='Downloads/SOLWEIG-GPU 2/Forcing_data/WRFOUT/',
)
Creating tiles for Building_DSM...
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Building_DSM/Building_DSM_0_0.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Building_DSM/Building_DSM_0_1000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Building_DSM/Building_DSM_0_2000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Building_DSM/Building_DSM_0_3000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Building_DSM/Building_DSM_1000_0.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Building_DSM/Building_DSM_1000_1000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Building_DSM/Building_DSM_1000_2000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Building_DSM/Building_DSM_1000_3000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Building_DSM/Building_DSM_2000_0.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Building_DSM/Building_DSM_2000_1000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Building_DSM/Building_DSM_2000_2000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Building_DSM/Building_DSM_2000_3000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Building_DSM/Building_DSM_3000_0.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Building_DSM/Building_DSM_3000_1000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Building_DSM/Building_DSM_3000_2000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Building_DSM/Building_DSM_3000_3000.tif
Creating tiles for DEM...
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/DEM/DEM_0_0.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/DEM/DEM_0_1000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/DEM/DEM_0_2000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/DEM/DEM_0_3000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/DEM/DEM_1000_0.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/DEM/DEM_1000_1000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/DEM/DEM_1000_2000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/DEM/DEM_1000_3000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/DEM/DEM_2000_0.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/DEM/DEM_2000_1000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/DEM/DEM_2000_2000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/DEM/DEM_2000_3000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/DEM/DEM_3000_0.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/DEM/DEM_3000_1000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/DEM/DEM_3000_2000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/DEM/DEM_3000_3000.tif
Creating tiles for Trees...
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Trees/Trees_0_0.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Trees/Trees_0_1000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Trees/Trees_0_2000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Trees/Trees_0_3000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Trees/Trees_1000_0.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Trees/Trees_1000_1000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Trees/Trees_1000_2000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Trees/Trees_1000_3000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Trees/Trees_2000_0.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Trees/Trees_2000_1000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Trees/Trees_2000_2000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Trees/Trees_2000_3000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Trees/Trees_3000_0.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Trees/Trees_3000_1000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Trees/Trees_3000_2000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Trees/Trees_3000_3000.tif
Creating tiles for Landcover...
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Landcover/Landcover_0_0.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Landcover/Landcover_0_1000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Landcover/Landcover_0_2000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Landcover/Landcover_0_3000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Landcover/Landcover_1000_0.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Landcover/Landcover_1000_1000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Landcover/Landcover_1000_2000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Landcover/Landcover_1000_3000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Landcover/Landcover_2000_0.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Landcover/Landcover_2000_1000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Landcover/Landcover_2000_2000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Landcover/Landcover_2000_3000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Landcover/Landcover_3000_0.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Landcover/Landcover_3000_1000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Landcover/Landcover_3000_2000.tif
Created tile: Downloads/SOLWEIG-GPU 2/Input_rasters/Landcover/Landcover_3000_3000.tif
New NetCDF file created: Downloads/SOLWEIG-GPU 2/Input_rasters/Outfile.nc
Processing 23 time steps for metfile_0_0
Metfile saved: Downloads/SOLWEIG-GPU 2/Input_rasters/metfiles/metfile_0_0_2020-08-13.txt
Processing 23 time steps for metfile_3000_3000
Metfile saved: Downloads/SOLWEIG-GPU 2/Input_rasters/metfiles/metfile_3000_3000_2020-08-13.txt
Processing 23 time steps for metfile_0_2000
Metfile saved: Downloads/SOLWEIG-GPU 2/Input_rasters/metfiles/metfile_0_2000_2020-08-13.txt
Processing 23 time steps for metfile_2000_2000
Metfile saved: Downloads/SOLWEIG-GPU 2/Input_rasters/metfiles/metfile_2000_2000_2020-08-13.txt
Processing 23 time steps for metfile_3000_1000
Metfile saved: Downloads/SOLWEIG-GPU 2/Input_rasters/metfiles/metfile_3000_1000_2020-08-13.txt
Processing 23 time steps for metfile_1000_0
Metfile saved: Downloads/SOLWEIG-GPU 2/Input_rasters/metfiles/metfile_1000_0_2020-08-13.txt
Processing 23 time steps for metfile_1000_2000
Metfile saved: Downloads/SOLWEIG-GPU 2/Input_rasters/metfiles/metfile_1000_2000_2020-08-13.txt
Processing 23 time steps for metfile_2000_1000
Metfile saved: Downloads/SOLWEIG-GPU 2/Input_rasters/metfiles/metfile_2000_1000_2020-08-13.txt
Processing 23 time steps for metfile_0_3000
Metfile saved: Downloads/SOLWEIG-GPU 2/Input_rasters/metfiles/metfile_0_3000_2020-08-13.txt
Processing 23 time steps for metfile_3000_2000
Metfile saved: Downloads/SOLWEIG-GPU 2/Input_rasters/metfiles/metfile_3000_2000_2020-08-13.txt
Processing 23 time steps for metfile_0_1000
Metfile saved: Downloads/SOLWEIG-GPU 2/Input_rasters/metfiles/metfile_0_1000_2020-08-13.txt
Processing 23 time steps for metfile_2000_3000
Metfile saved: Downloads/SOLWEIG-GPU 2/Input_rasters/metfiles/metfile_2000_3000_2020-08-13.txt
Processing 23 time steps for metfile_1000_3000
Metfile saved: Downloads/SOLWEIG-GPU 2/Input_rasters/metfiles/metfile_1000_3000_2020-08-13.txt
Processing 23 time steps for metfile_2000_0
Metfile saved: Downloads/SOLWEIG-GPU 2/Input_rasters/metfiles/metfile_2000_0_2020-08-13.txt
Processing 23 time steps for metfile_3000_0
Metfile saved: Downloads/SOLWEIG-GPU 2/Input_rasters/metfiles/metfile_3000_0_2020-08-13.txt
Processing 23 time steps for metfile_1000_1000
Metfile saved: Downloads/SOLWEIG-GPU 2/Input_rasters/metfiles/metfile_1000_1000_2020-08-13.txt
All raster extents processed and metfiles saved in Downloads/SOLWEIG-GPU 2/Input_rasters/metfiles
Using 12 parallel workers
Computing Wall Height and Aspect: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 16/16 [01:40<00:00, 6.27s/it]
Running Solweig ...
Attention! The land cover grid includes values (deciduous and/or conifer) not appropriate for the SOLWEIG-formatted land cover grid (should not include 3 or 4). Land cover under the vegetation is required. Setting the invalid landcover types to grass.
[INFO] Timezone: America/Chicago, UTC offset: -5.0 hours
Time taken to execute tile 0_0: 490.13 seconds
Attention! The land cover grid includes values (deciduous and/or conifer) not appropriate for the SOLWEIG-formatted land cover grid (should not include 3 or 4). Land cover under the vegetation is required. Setting the invalid landcover types to grass.
[INFO] Timezone: America/Chicago, UTC offset: -5.0 hours
Time taken to execute tile 0_1000: 484.57 seconds
Attention! The land cover grid includes values (deciduous and/or conifer) not appropriate for the SOLWEIG-formatted land cover grid (should not include 3 or 4). Land cover under the vegetation is required. Setting the invalid landcover types to grass.
[INFO] Timezone: America/Chicago, UTC offset: -5.0 hours
Time taken to execute tile 0_2000: 420.40 seconds
Attention! The land cover grid includes values (deciduous and/or conifer) not appropriate for the SOLWEIG-formatted land cover grid (should not include 3 or 4). Land cover under the vegetation is required. Setting the invalid landcover types to grass.
[INFO] Timezone: America/Chicago, UTC offset: -5.0 hours
Time taken to execute tile 0_3000: 205.41 seconds
Attention! The land cover grid includes values (deciduous and/or conifer) not appropriate for the SOLWEIG-formatted land cover grid (should not include 3 or 4). Land cover under the vegetation is required. Setting the invalid landcover types to grass.
[INFO] Timezone: America/Chicago, UTC offset: -5.0 hours
Time taken to execute tile 1000_0: 465.72 seconds
Attention! The land cover grid includes values (deciduous and/or conifer) not appropriate for the SOLWEIG-formatted land cover grid (should not include 3 or 4). Land cover under the vegetation is required. Setting the invalid landcover types to grass.
[INFO] Timezone: America/Chicago, UTC offset: -5.0 hours
Time taken to execute tile 1000_1000: 445.06 seconds
Attention! The land cover grid includes values (deciduous and/or conifer) not appropriate for the SOLWEIG-formatted land cover grid (should not include 3 or 4). Land cover under the vegetation is required. Setting the invalid landcover types to grass.
[INFO] Timezone: America/Chicago, UTC offset: -5.0 hours
Time taken to execute tile 1000_2000: 413.91 seconds
Attention! The land cover grid includes values (deciduous and/or conifer) not appropriate for the SOLWEIG-formatted land cover grid (should not include 3 or 4). Land cover under the vegetation is required. Setting the invalid landcover types to grass.
[INFO] Timezone: America/Chicago, UTC offset: -5.0 hours
Time taken to execute tile 1000_3000: 215.11 seconds
Attention! The land cover grid includes values (deciduous and/or conifer) not appropriate for the SOLWEIG-formatted land cover grid (should not include 3 or 4). Land cover under the vegetation is required. Setting the invalid landcover types to grass.
[INFO] Timezone: America/Chicago, UTC offset: -5.0 hours
Time taken to execute tile 2000_0: 510.98 seconds
Attention! The land cover grid includes values (deciduous and/or conifer) not appropriate for the SOLWEIG-formatted land cover grid (should not include 3 or 4). Land cover under the vegetation is required. Setting the invalid landcover types to grass.
[INFO] Timezone: America/Chicago, UTC offset: -5.0 hours
Time taken to execute tile 2000_1000: 533.80 seconds
Attention! The land cover grid includes values (deciduous and/or conifer) not appropriate for the SOLWEIG-formatted land cover grid (should not include 3 or 4). Land cover under the vegetation is required. Setting the invalid landcover types to grass.
[INFO] Timezone: America/Chicago, UTC offset: -5.0 hours
Time taken to execute tile 2000_2000: 522.87 seconds
Attention! The land cover grid includes values (deciduous and/or conifer) not appropriate for the SOLWEIG-formatted land cover grid (should not include 3 or 4). Land cover under the vegetation is required. Setting the invalid landcover types to grass.
[INFO] Timezone: America/Chicago, UTC offset: -5.0 hours
Time taken to execute tile 2000_3000: 221.12 seconds
Attention! The land cover grid includes values (deciduous and/or conifer) not appropriate for the SOLWEIG-formatted land cover grid (should not include 3 or 4). Land cover under the vegetation is required. Setting the invalid landcover types to grass.
[INFO] Timezone: America/Chicago, UTC offset: -5.0 hours
Time taken to execute tile 3000_0: 373.48 seconds
Attention! The land cover grid includes values (deciduous and/or conifer) not appropriate for the SOLWEIG-formatted land cover grid (should not include 3 or 4). Land cover under the vegetation is required. Setting the invalid landcover types to grass.
[INFO] Timezone: America/Chicago, UTC offset: -5.0 hours
Time taken to execute tile 3000_1000: 372.23 seconds
Attention! The land cover grid includes values (deciduous and/or conifer) not appropriate for the SOLWEIG-formatted land cover grid (should not include 3 or 4). Land cover under the vegetation is required. Setting the invalid landcover types to grass.
[INFO] Timezone: America/Chicago, UTC offset: -5.0 hours
Time taken to execute tile 3000_2000: 382.92 seconds
Attention! The land cover grid includes values (deciduous and/or conifer) not appropriate for the SOLWEIG-formatted land cover grid (should not include 3 or 4). Land cover under the vegetation is required. Setting the invalid landcover types to grass.
[INFO] Timezone: America/Chicago, UTC offset: -5.0 hours
Time taken to execute tile 3000_3000: 166.19 seconds
[7]:

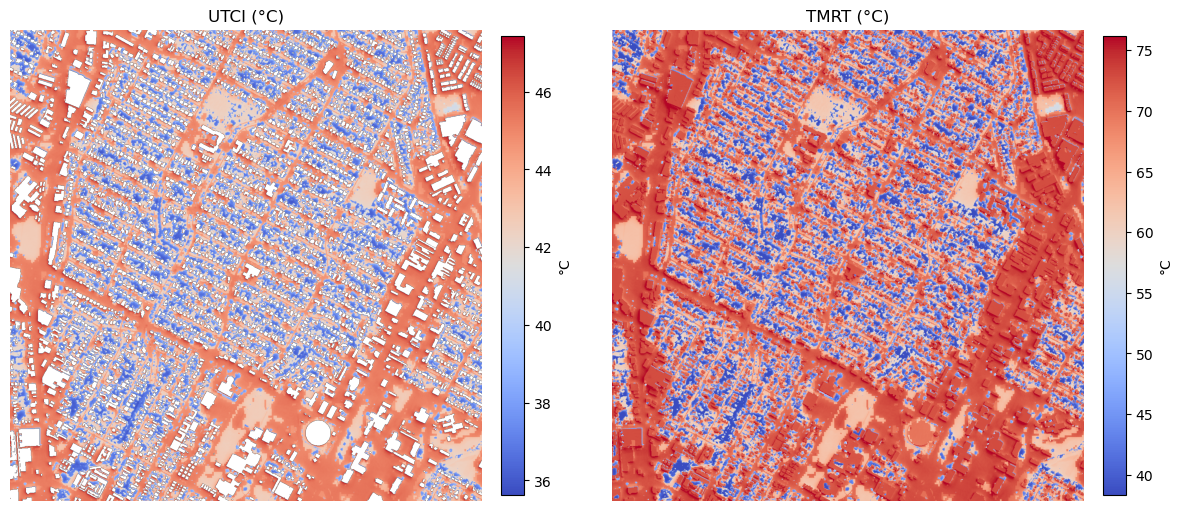

import rasterio
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.colors import TwoSlopeNorm
# ---- paths ----
utci_path = "Downloads/SOLWEIG-GPU 2/Input_rasters/Outputs/1000_1000/UTCI_1000_1000.tif"
tmrt_path = "Downloads/SOLWEIG-GPU 2/Input_rasters/Outputs/1000_1000/TMRT_1000_1000.tif"
def read_band(path):
with rasterio.open(path) as src:
arr = src.read(15).astype(float) # raster correponding to 3pm (15H)
# mask NoData
if src.nodata is not None:
arr = np.where(arr == src.nodata, np.nan, arr)
bounds = src.bounds
extent = (bounds.left, bounds.right, bounds.bottom, bounds.top)
return arr, extent
# read both rasters
utci, utci_extent = read_band(utci_path)
tmrt, tmrt_extent = read_band(tmrt_path)
utci_cmap = "coolwarm"
tmrt_cmap = "coolwarm"
# ---- plot ----
fig, axes = plt.subplots(1, 2, figsize=(12, 5), constrained_layout=True)
im0 = axes[0].imshow(utci, extent=utci_extent, origin="upper",
cmap=utci_cmap)
axes[0].set_title("UTCI (°C)")
axes[0].axis("off")
cbar0 = fig.colorbar(im0, ax=axes[0], fraction=0.046, pad=0.04)
cbar0.set_label("°C")
im1 = axes[1].imshow(tmrt, extent=tmrt_extent, origin="upper",
cmap=tmrt_cmap, vmin=tmrt_vmin, vmax=tmrt_vmax)
axes[1].set_title("TMRT (°C)")
axes[1].axis("off")
cbar1 = fig.colorbar(im1, ax=axes[1], fraction=0.046, pad=0.04)
cbar1.set_label("°C")
plt.show()
[ ]:
